- V-TEK™ Butterfly Valves have proven functionality and reliability.
- Designed in 1998, the V-TEK™ valve allows full interchangeability of most handles, actuators and parts available on the market. V-TEK™ valves are used extensively in all Hygienic Process Industries.
- Full maintenance and assembly instructions are available on request Special Features:-
- Superior Hygienic Design
- Easy to assemble/disassemble
- Low Torque – longer Seal Life
- For use up to 150 psi/10 bar
- 100% Tested & Inspected
General Characteristics:-
- Size Range: 1/2″ OD – 6″ OD, 25mm – 104mm, DN 25 – DN 100.
- Material: Forged 316L Stainless Steel body.
- Standards: BS, 3A, IDF, SMS, DIN, CLAMP.
- Seal Material: Food Grade EPDM, Silicone, Viton.
- Surface Finish: All wetted surfaces are polished <0.5 Ra
- Disc: Forged 316L Stainless Steel Polished.
- Pressure Rating: 150psi / 10bar max.
- Spare butterfly seal kits available ex-stock.
- Valve Ends: Weld/Weld, Male/Male, Male/Female, Clamp/Ferrule.
- Actuation & control packages available to suit all valve sizes.

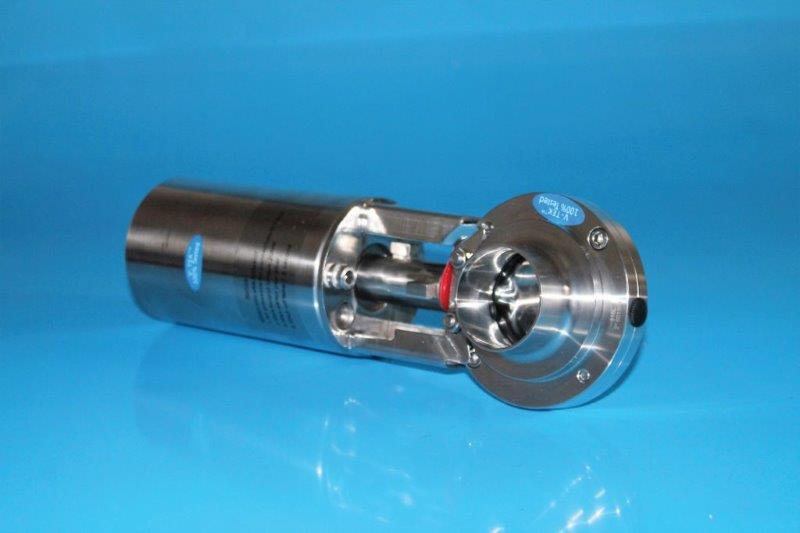

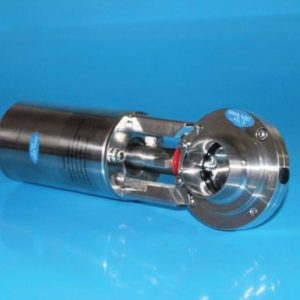

- Actuator – VT 1 & C2 for 1″-3″ valves, VT 101 Actuator for 4″ & Control boxes – to suit C2 & VT101 Actuator.

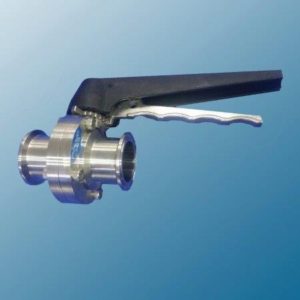

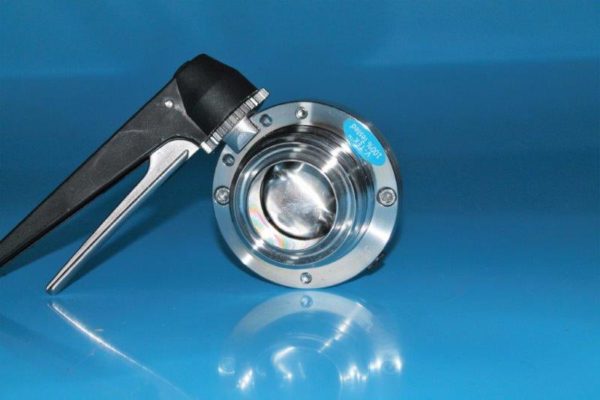

Butterfly Valve Handles:
- 12 position plastic handle Lever Handle & Notch plate
- 12 position Stainless Steel handle Lever Handle & Notch plate
- 4 position Stainless Steel Pull handle 304
- SUREGRIP™ 12 position plastic handle Lever Handle & Notch plate
Butterfly Valve Seals:
- EPDM
- Silicone
- Viton

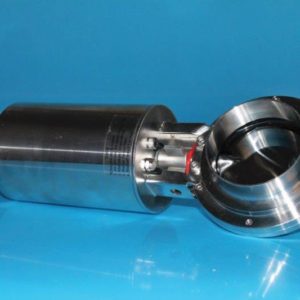

CONTROL BOX:
- Material: 304 Stainless Steel.
- Attaches to C2 & C101 Actuator.
- 3A 125v AC, 30v DC Micro-switches x 2
- 24v DC 3.0 Solenoid Valve – 2.6w
IP65 Rated.
